PY Series roll die cutting machine

PY Series roll die cutting machine
PY Series roll die cutting machine
Machine description

PY-950/1200 is an ideal and professional machine in die-cutting,,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.



Technical Specification

Type

PY-950 /PY-950H/ PY-950P

PY- 1200

PY- 1300

PY- 1450

Mechanical running speed

150-260 times/min(Mechanical speed max 260 times)

100- 210 times/min (Mechanical speed max 210 times)

Paper Convey Width

950-300mm

1200-400mm

1300-400mm

1450-400mm

Maximum cutting size

950 x540mm/ Optional:PY-950H(heavy model)/ PY-950P (cutting size:950 x640mm)

1200 x640mm

1300 x750mm

1450 x750mm

Total Weight

7000kgs/7400kgs/7800kgs

9000kgs

10500kgs

13000kgs

Overall Dimension

4.5 x 2. 1 x 1.85m

4.7x2.3x 1.85m

Suitable Material

100-800g/m2 white cardboard, PE coated paper, Kraft paper.etc

Total Power and Air source

12KW; 0.6Mpa; 0.3m³/min; 380V/50HZ (other voltage can be customized)

15.5KW;    0.6Mpa; 0.3m³/min; 380V/50HZ (other voltage can be customized)

Max Roll paper diameter

1600mm

Cut Precision

± 0.20mm

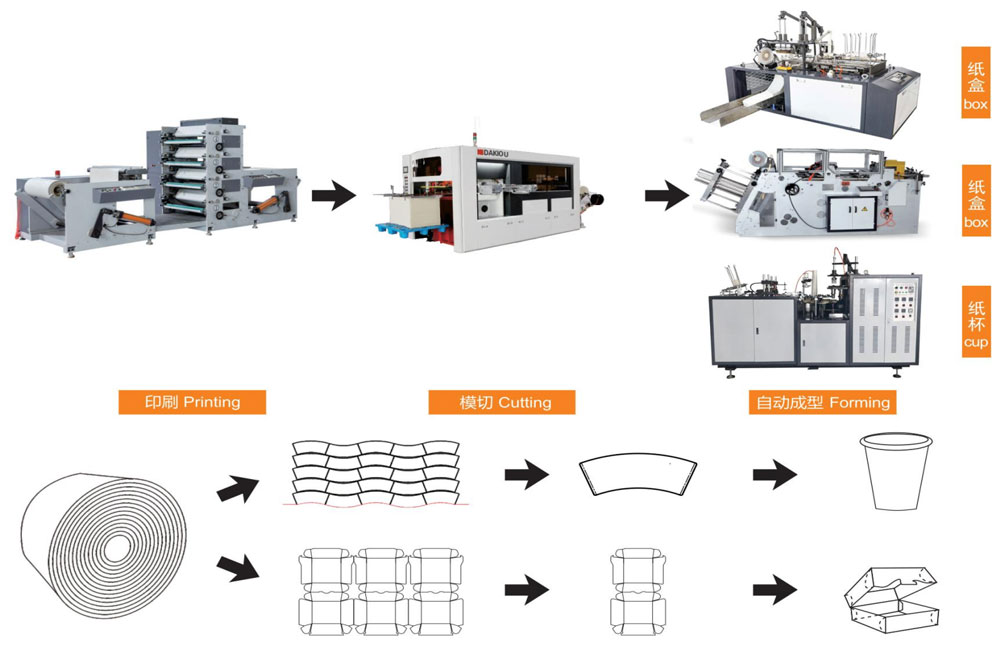

Machine produce line
