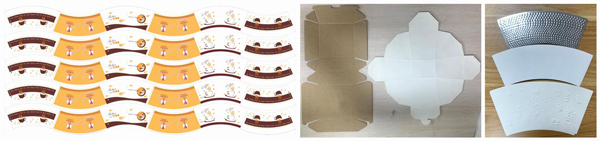

PY-950/1200 is an ideal and professional machine in die-cutting，creasing，embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.

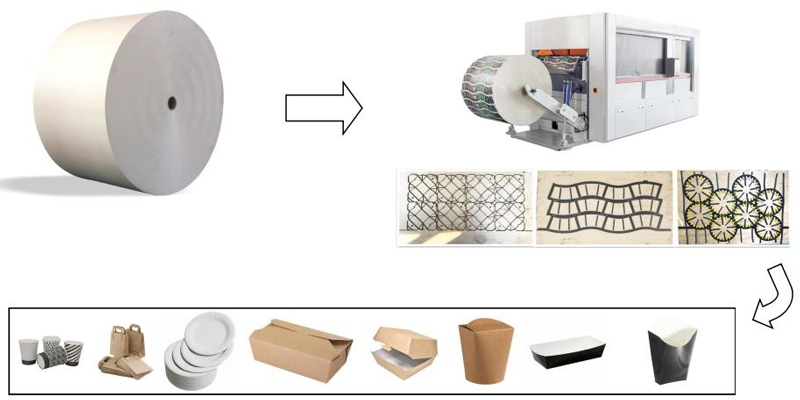

BRIEF PROCESS
Technical Specification
|
Type: |
PY-950 |
PY-1200 |
|
Cut Precision: |
± 0.10mm |
|
|
Production capacity |
150-210 times/min |
150-210 times/min |
|
Maximum cutting size: |
950×540mm |
1200×640mm |
|
Paper Convey Width: |
250-950mm |
250-1200mm |
|
Suitable Material: |
120-600g/m² white cardboard、PE coated paper etc. |
|
|
Maximum Pressure: |
350T |
350T |
|
Total Power: |
14.5KW |
14.5KW |
|
Total Weight: |
6200kgs |
8400KGS |
|
Overall Dimension: |
4200×2100×1850 mm |
4200×2300×1850 mm |
|
Working Air Source: |
Air pressure 0.6Mpa , Working air: 0.3m³/min |
|
