JTCQ-D900/1200Y High Speed Roll Die Punching Machine With Creasing Function

JTCQ-D900/1200Y High Speed Roll Die Punching Machine With Creasing Function
JTCQ-D900/1200Y High Speed Roll Die Punching Machine With Creasing Function
JTCQ-D900/1200Y High Speed Roll Die Punching Machine With Creasing Function
JTCQ-D900/1200Y High Speed Roll Die Punching Machine With Creasing Function

Machine Produce process:

Machine description:

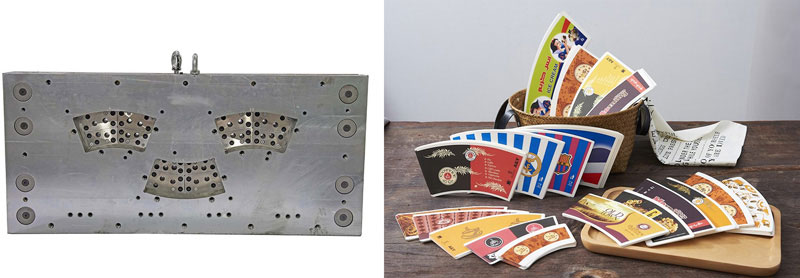

JTCQ-DY 900/1200  automatic roll die punching machine with creasing function is a good choice for die punching paper cup fan. It adds the creasing function so we can do the water line or creasing line on paper cup fan.

The roll paper go through with creasing ,die punching, and stripping process. And the ready paper cup fan come out in front of the machine. And Waste paper is delivered by beside way .

Technical Specification

Type

JTCQ-DY900

JTCQ-DY1200

Cut Precision:

± 0.10mm

Production capacity



300times/min

Max Paper Convey Width:

900mm

1200

Max die cutting size

850*350mm

1150*350mm

Suitable Material:

120-450g/m2  PE coated paper, white cardboard paper

Total Power:

12KW

13KW

Total Weight:

6200KGS

8000KGS

Overall Dimension:

4500 x 2200 x 1600 mm(with airshaft)

4500 x 2300 x 1600 mm (with airshaft)

Working Air Source:

Air pressure 0.4-0.5Mpa



The produce line we have
