JTCQ-D900/1200 High Speed Roll Die Puching Machine

JTCQ-D900/1200 High Speed Roll Die Puching Machine
JTCQ-D900/1200 High Speed Roll Die Puching Machine
Machine description

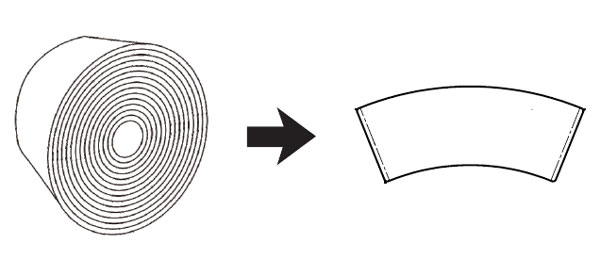

JTCQ-D Roll automatic punching machine is a good choice for punching and die cutting paper cup fan with different size by changing molds, high speed and good performance with stripping. It is the best associated equipment for flexo printing machine.



Technical Specification
TYPE JTCQ-D900 JTCQ-D1200
Capacity 300-400 times/min(Mechanical speed max400 times)
Precision +0.20mm ±0.20mm
Max Paper Convey Width 870-300mm 1170-300mm
Maximum cutting size 850*350mm 1150*350mm
Max Roll paper diameter 1500mm(Shaftless unwinding:1600mm )
Total Power 9KW 10KW
Power source 380V 50HZ(other voltage can be customized)
Working Air Source 0.3m 3/min,0.5-0.7Mpa
Suitable Material 120-450g/m2 PE coated paper, white cardboard paper
Weight 3580KGS 5050KGS
Overall Dimension 3450 × 2100 × 1850 mm 3450 × 2300 × 1850 mm

other size can be customized.
