JTCQ-D Automatic high speed roll die punching machine

JTCQ-D Automatic high speed roll die punching machine
JTCQ-D Automatic high speed roll die punching machine
JTCQ-D Automatic high speed roll die punching machine
JTCQ-D Automatic high speed roll die punching machine

JTCQ-D Roll automatic punching machine is a good choice for punching and die cutting paper cup fan with different size by changing molds, high speed and good performance with stripping. It is the best associated equipment for flexo printing machine.

Technical Specification

Type:

JTCQ-D900

JTCQ-D1200

Cut Precision:

± 0.10mm

Production capacity:

Metal mold (Germany): 300-380 times/min Metal mold(Japan): 200-240 times/min

Metal die life:

Metal mold (Germany): 60,000,000 times Metal mold(Japan): 20,000,000.times

Max die cutting size:

870×350mm

1150×350mm

Suitable Material:

120-450g/m² PE coated paper, white cardboard paper

Total Power:

9KW

9KW

Total Weight:

3580KGS

3800KGS

Overall Dimension:

3200×1800×1600 mm

3200×2000×1600 mm

Working Air Source:

Air pressure 0.4-0.5Mpa

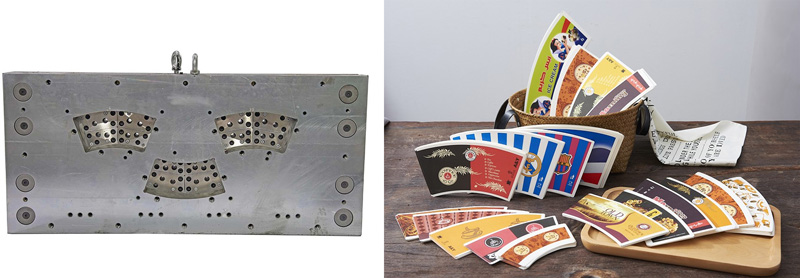

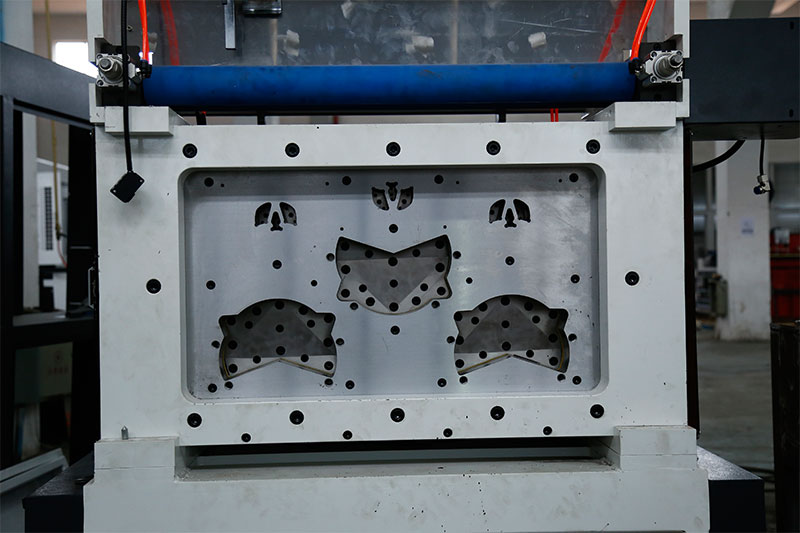

Metal mold.

Molds, samples
