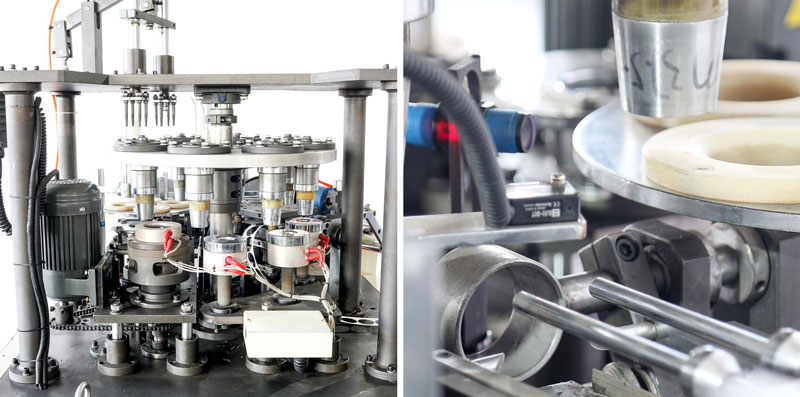

ZSZB-D Automatic Medium Speed Paper Cup Forming Machine

Cup size:

2-12oz

Suitable paper material:

150-380g/m2（single or double PE-coated paper)

Capacity:

70-90pcs/min

Power source::

220V、380V 50HZ（please inform us your power in advanced）

Total power:

8KW

Weight:

2000.00KG

Package size:

2200 x 1200 x 1700 mm

Working Air Source:

Air pressure 0.6Mpa;Air out-put:0.6m3/min

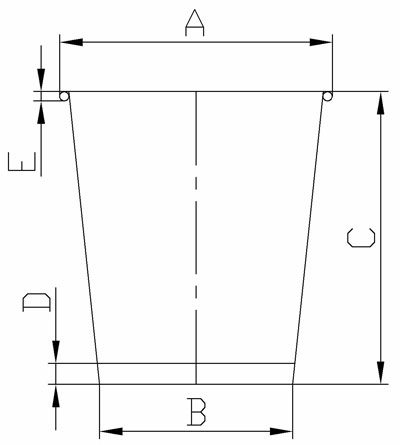

A： top diameter:

Min 45mm---Max 95mm

B： bottom diameter

Min 30mm---Max 65mm

C： total height

Min 30mm---Max 105mm

D： bottom knurling depth

Min 4mm---Max 10mm

E： rim diameter

    Usually Φ2.5---Φ3
