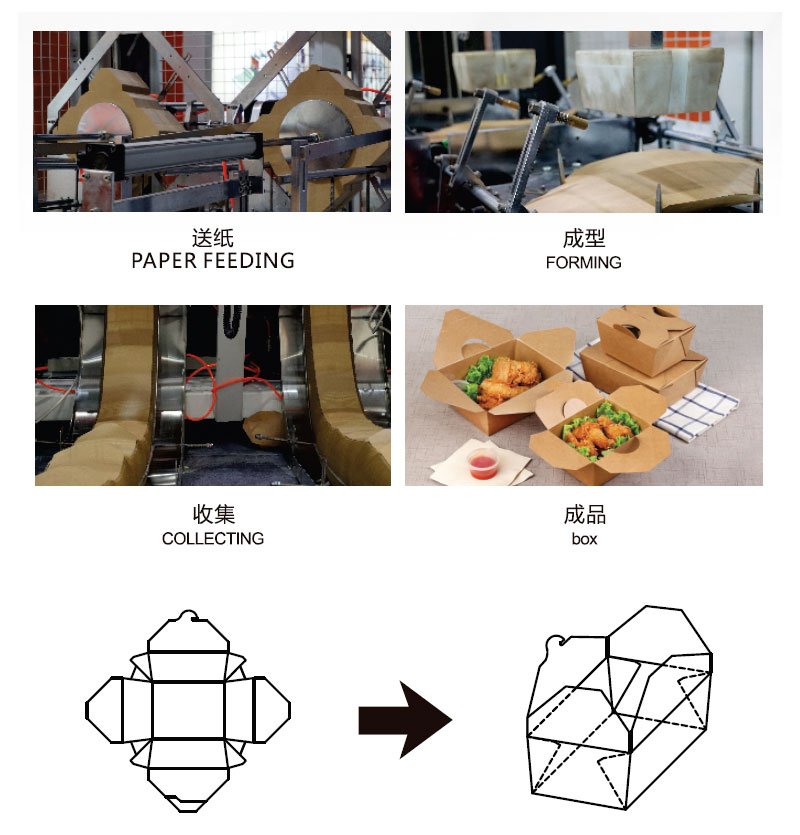

HBJ-D2000 paper carton erecting machine is a double lane model which is an ideal choice to produce the hamburger box , take away box , noodle pail and other food containers. lt adopts HMl touch screen, paper vacuum suction, mechanical gluing for non-stop fill paper, stableworking,and simple operation.
| TYPE | HBJ-D2000 |
| Production capacity | 100-200 pcs/min |
| Material | 200-600/m2 corrugating paper thick:1.5mm |
| Power | 380V 50HZ |
| Total Power | 4Kw |
| Lengh | L100-450mm degree : 5°-40° |
| Width | B100-600mm hight:H15-200mm |
| Dimension | 2300×2200×2100 mm |
| Weight | 2200kgs |
