1.Press lubrication adopts automatic circulation electric thin oil lubrication system:progressive lubrication oil distributor with lubrication fault detection switch ensures sufficient and even lubrication and avoids damage to the guide rail by running without oil.
2.The press adopts cantilever type rotatable integrated touch screen control structure, the touch screen can remotely monitor the running status of the equipment and update the program online.
3.Aluminum foil feeding adopts servo system: it can adapt to different thickness and width of aluminum foil material to complete the feeding quickly and more accurately, and the curve output torque makes the aluminum foil smooth and not shaking.
4.Adopting H-type eight-face guide rail and excellent dynamic balance design, low vibration and low noise.
Adopting highly sensitive and reliable Italian OMPI dry clutch and Japanese TACO duplex solenoid valve: to ensure the accuracy and safety of the press slide running and stopping in time.
Model |
ZBFC-80 |
Nominal Force |
800KN |
Main Motor Power |
18.5KW |
Stroke Range |
150-260mm |
Stamping Speed Range |
35-80times/min. |
Table Plate Size |
L1480xW900mm,2sets movable plate |
Maximum Mold Size |
L1450xW850xH500mm |
Maximum Feed Width |
1220mm |
Maximum Aluminum Foil Roll Outer Diameter |
600-1500mm |
Stacker Conveyor Size |
L2000xW1300mm |
Minimum Stackable Size |
100x100mm |
Product Stacking Dimensions |
Three lane: L600xW350xH350mm |
Four lane: L600xW250xH350mm |
|
Five lane: L600xW210xH350mm |
|
Six lane: L600xW170xH350mm |
|

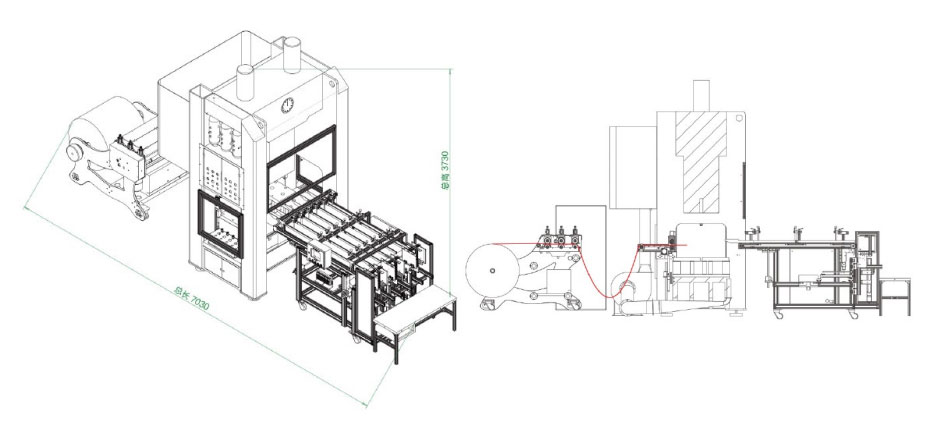

Machine Size |
8000x2500x3650mm |
Machine Weight |
13,500KGS |
